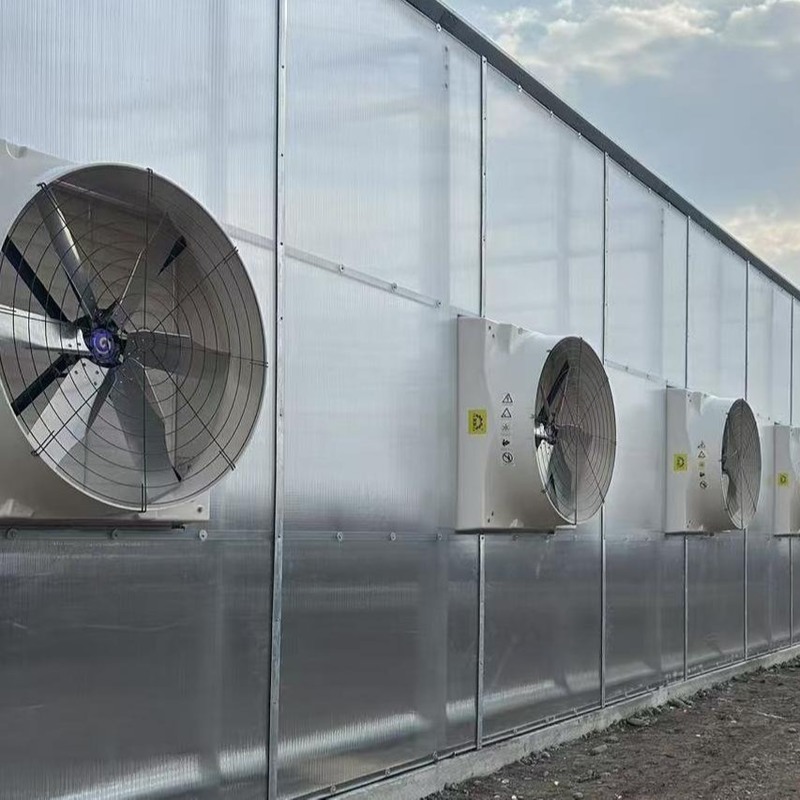

Heavy Duty Industrial Ventilation Fan Max Airflow 45000m³/h Greenhouse Circulation Fans

Heavy Duty Industrial Ventilation Fan Max Airflow 45000m³/h Greenhouse Circulation Fans

45000m³/h Industrial Ventilation Fan

Greenhouse Circulation Fans

Heavy Duty Industrial Ventilation Fan

Place of Origin:

China

Brand Name:

Terrui

Certification:

CE

Model Number:

YDA048DECKA0

Contact Us
Request A Quote
Product Details
Product Name:
48''Exhaust Fan
Size:
1460*1460*580mm
Blade Diameter:
48''/1.22m
Installation:
Screw To The Frame On The Wall
Air Volume/W:
52.9m³/h
Current:
1.7A
Rotation Speed:
460r/min(20%-100% Speed Control)
Power:
3Φ/380V/50Hz
Protection Level:
IP55
Frame Material:
High-strength Fiberglass
Max Airflow:
45000m³/h
Motor:
Outer Rotor Permanent Magnet Brushless DC Motor
Type:
Industrial Exhaust Fan
Highlight:

45000m³/h Industrial Ventilation Fan

,

Greenhouse Circulation Fans

,

Heavy Duty Industrial Ventilation Fan

Payment & Shipping Terms
Minimum Order Quantity
20
Price
discuss
Packaging Details
wooden pallet
Delivery Time
10 work days
Payment Terms
L/C, T/T
RELATED PRODUCTS
Contact Us
86-21-64953307
Contact Now
Product Description

Energy-Saving Ventilation Fan featuring Advanced Rare Earth EC Motor Technology


Slash your operational costs without sacrificing performance with our ultra-efficient exhaust fan. This unit is powered by advanced Rare Earth EC motor technology, which consumes up to 70% less energy than conventional induction motors. The brushless design eliminates friction losses, ensuring that more power is converted directly into airflow. This translates to significant savings on your electricity bills over the fan's extended lifespan. Smart APP control further enhances efficiency, allowing you to run the fan at optimal speeds and only when necessary, maximizing your return on investment.



Heavy Duty Industrial Ventilation Fan Max Airflow 45000m³/h Greenhouse Circulation Fans 0



Technical Parameters:

Noise

≤70dB

Type

Industrial exhaust fan

Frame Material

High-strength fiberglass

Installation

Screw to the frame on the Wall

Product Model

YDA048DECKA0

Motor

Outer rotor permanent magnet brushless DC motor

Power

3Φ/380V/50Hz

Input power

850w

Max Airflow

45000m³/h

Air Volume/W

52.9m³/h

Rotation Speed

460r/min(20%-100% Speed Control)

Fan Blade Diameter

48''/1.22m

Product Name

48’’/1.2M REFINE Exhaust fan

Protection Level

IP55

Current

1.7A

Frame Size

1460*1460*580mm



This fan is an ideal investment for any facility focused on reducing long-term energy consumption and operating costs. It is perfect for large commercial buildings, data centers, indoor farms, and public institutions where ventilation systems run for extended periods. By upgrading to this energy-saving technology, businesses can not only lower their utility expenses but also contribute to sustainability goals and reduce their carbon footprint, making it a smart choice for both your budget and the environment.
