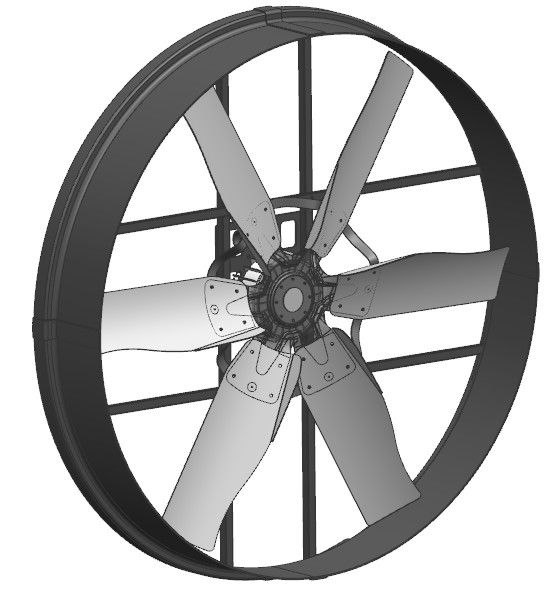

Energy Saving And Poultry Fan Equipped With Outer Rotor Permanent Magnet Brushless DC Motor
Product Details
Outer Rotor Poultry Fan
,Energy Saving Poultry Fan
,Brushless DC Motor Poultry Fan
Product Description:
The Livestock Ventilation Fans are a must-have for any poultry farm or industrial setting in need of efficient air circulation. Designed to provide optimal ventilation, these fans are built to last and withstand the demands of continuous use.
With a Protection Level of IP55, these fans are well-equipped to handle the challenges of an industrial environment. The IP55 rating ensures that the fan is protected against dust and water ingress, making it suitable for indoor industrial ceiling fan applications where exposure to moisture or debris is a concern.
The Livestock Ventilation Fans boast an Input Power of 3300W, ensuring powerful performance to effectively circulate air and maintain a comfortable environment for livestock or workers. Whether you require a reliable poultry hanging fan or an industrial ceiling fan for your facility, these fans deliver the performance you need.
Constructed with 6pcs Alloy Blades measuring 4mm in Thickness, these fans are designed for maximum efficiency and durability. The blade material is chosen for its strength and resistance to wear, ensuring a long lifespan and consistent performance over time.
The Frame Material of these ventilation fans is crafted from High-strength Double-layer PE, providing a sturdy and reliable housing for the fan components. This construction not only enhances the durability of the fan but also contributes to its overall efficiency and performance.
Operating at a Rotation Speed of 320r/min, these fans are capable of delivering a high volume of air circulation to effectively cool and ventilate the designated area. Whether installed as a poultry hanging fan in a barn or as an industrial ceiling fan in a warehouse, these fans are designed to meet the ventilation needs of various environments.
When it comes to selecting a ventilation fan for your livestock facility or industrial space, the Livestock Ventilation Fans offer a reliable and efficient solution. With a robust construction, high-powered performance, and durable materials, these fans are engineered to enhance air circulation and maintain optimal conditions for both livestock and workers.
Features:
- Product Name: Livestock Ventilation Fans
- Rotation Speed: 320r/min
- Drive Mode: Direct
- Frame Material: High-strength Double-layer PE
- Protection Level: IP55
- Power: 3PH/380-460V/50-60HZ
Technical Parameters:
| Noise | ≤70dB |
| Air Speed | 6.5m/s- 6m To The Fan |
| Protection Level | IP55 |
| Motor | Outer Rotor Permanent Magnet Brushless DC Motor |
| Power | 3PH/380-460V/50-60HZ |
| Max Airflow | 155000m³/h (91100CFM) |
| Blade Material | 6pcs Alloy(4mm Thickness) |
| Feature | Energy Saving And High Efficiency |
| Drive Mode | Direct |
| Air Volume/W | 46.9m³/h |
Applications:
Product Application Occasions and Scenarios for the Terrui Livestock Ventilation Fans (Model: YBA086EC):
The Terrui Livestock Ventilation Fans are versatile and efficient, suitable for various applications in the livestock industry. Here are some key product application occasions and scenarios:
1. Poultry Farms: The Livestock Ventilation Fans are ideal for use in poultry farms to ensure optimal air circulation and temperature control. The high-speed air and powerful airflow provided by the fans create a comfortable and healthy environment for the poultry, promoting their growth and well-being.
2. Livestock Barns: These fans are perfect for ventilation in livestock barns where proper air exchange is essential to prevent heat stress and maintain air quality. The roof industrial fan design of the Terrui fans allows for efficient air distribution throughout the barn, ensuring a conducive environment for the livestock.
3. Industrial Settings: The Terrui Livestock Ventilation Fans can also be used in various industrial settings where air circulation and ventilation are crucial. Whether in warehouses, factories, or workshops, these fans provide reliable and consistent airflow to improve overall air quality and create a more comfortable working environment.
With its certification for CE compliance and durable construction, including a high-strength double-layer PE frame and 6pcs alloy blades (4mm thickness), the Terrui Livestock Ventilation Fans (Model: YBA086EC) offer a reliable and long-lasting solution for ventilation needs. The fans have a maximum airflow of 155000m³/h (91100CFM) and a rotation speed of 320r/min, ensuring efficient air movement. The minimum order quantity is 2 units, and the packaging details include wooden pallets.
Originating from China, these Livestock Ventilation Fans from Terrui are designed to meet the demanding requirements of the livestock industry, providing effective ventilation solutions for various applications.
Support and Services:
The Livestock Ventilation Fans product offers comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our team of knowledgeable experts is available to assist with installation guidance, troubleshooting, and maintenance tips. Additionally, we provide regular product updates and upgrades to enhance functionality and efficiency.
FAQ:
Q: What is the brand name of the Livestock Ventilation Fans?
A: The brand name is Terrui.
Q: What is the model number of the Livestock Ventilation Fans?
A: The model number is YBA086EC.
Q: Where is the Livestock Ventilation Fans manufactured?
A: The fans are manufactured in China.
Q: Does the Livestock Ventilation Fans have any certification?
A: Yes, the fans are CE certified.
Q: What is the minimum order quantity for the Livestock Ventilation Fans?
A: The minimum order quantity is 2 units.
Q: How are the Livestock Ventilation Fans packaged for shipping?
A: The fans are packaged on a wooden pallet for shipping.
-
