380V / 50HZ Industrial Exhaust Fan With Outer Rotor Permanent Magnet Brushless DC Motor

380V / 50HZ Industrial Exhaust Fan With Outer Rotor Permanent Magnet Brushless DC Motor

380V Warehouse Exhaust Fans

Brushless DC Motor Industrial Exhaust Fan

Place of Origin:

China

Brand Name:

Terrui

Certification:

CE

Model Number:

YDA072DECGS

CONTACT US

Request A Quote
Product Details
Color:
Black
Weight:
129kg
Blade:
6pcs Alloy(4mm Thickness)
Noise:
≤70dB
Size:
2185*2185*885mm
Motor:
Outer Rotor Permanent Magnet Brushless DC Motor
Power:
3Φ/380V/50HZ
Max Airflow:
120200m³/h
Payment & Shipping Terms
Minimum Order Quantity
10
Price
discuss
Packaging Details
Wooden pallet
Payment Terms
T/T
RELATED PRODUCTS
CONTACT US
86-21-64953307
Contact Now
Product Description

Our industrial exhaust fan is designed for duct ventilation and is suitable for any industrial application. It features an exhaust fan motor with a noise level of ≤70dB and a weight of 129kg. The fan is black in color and comes pre-installed with eye bolts for chains. It is perfect for industrial ventilation needs and is an ideal choice for long-term use. Our industrial exhaust fan is highly reliable and efficient, making it the perfect solution for your ventilation needs. It is easy to install and maintain, making it a great choice for any industrial setting. With its superior performance and reliable construction, our industrial exhaust fan is sure to meet all your duct ventilation needs.

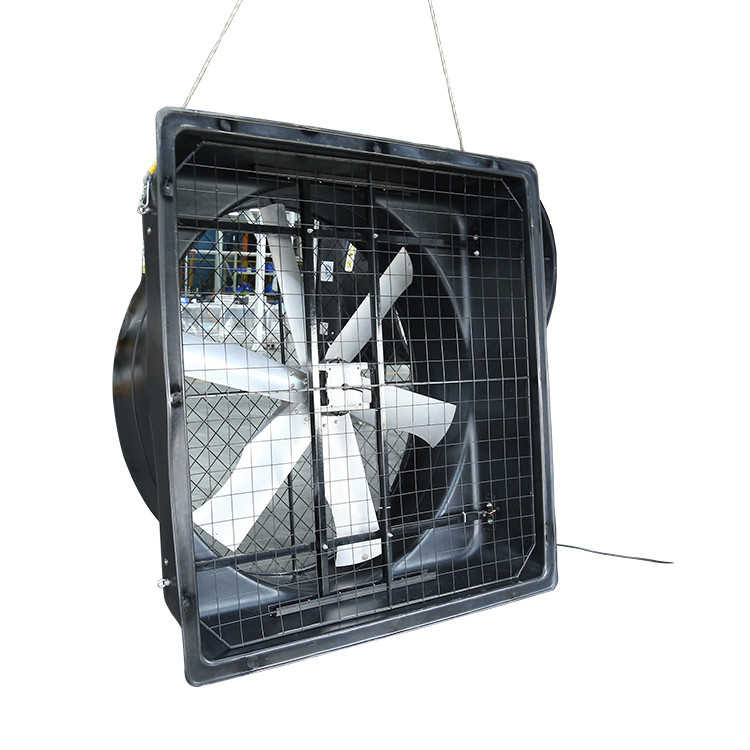

380V / 50HZ Industrial Exhaust Fan With Outer Rotor Permanent Magnet Brushless DC Motor 0

Technical Parameters:

Product Name Technical Parameter
Industrial Exhaust Fans Frame Material: High-strength Double-layer PE
Motor: Outer Rotor Permanent Magnet Brushless DC Motor
Power: 3Φ/380V/50HZ
Max Airflow: 120200m³/h
Noise: ≤70dB
Air Volume/W: 60m³/h
Weight: 129kg
Blade: 6pcs Alloy(4mm Thickness)
Color: Black


Applications:

Industrial Exhaust Fans – Terrui YDA072DECGS

The Terrui YDA072DECGS Industrial Exhaust Fan is ideal for fire smoke exhaust, bathroom exhaust fan motor, and other industrial exhaust needs. Engineered with a size of 2185*2185*885mm and a weight of 129kg, this industrial exhaust fan features a 6-piece alloy blade with a 4mm thickness. The black-colored fan offers a maximum airflow of 120200m³/h, making it a powerful and reliable choice for a variety of industrial applications.

The Terrui YDA072DECGS Industrial Exhaust Fan is manufactured in China with the highest quality standards in mind. Its robust design and superior performance make it an excellent choice for fire smoke exhaust, bathroom exhaust fan motor, and other industrial exhaust requirements.

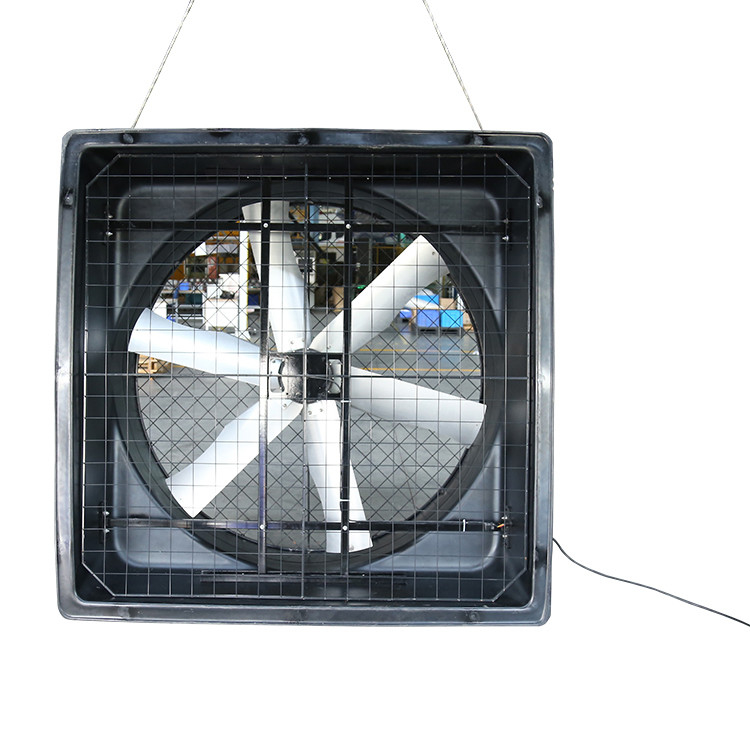

380V / 50HZ Industrial Exhaust Fan With Outer Rotor Permanent Magnet Brushless DC Motor 1
