72 Inch Dairy Barn Circulation Fan 2kW Six Alloy Blades For Cattle Cooling Airflow

Basic Properties
Place of Origin: Shanghai
Brand Name: Terrui
Certification: ISO9001
Model Number: YKA072DEC
Trading Properties
Minimum Order Quantity: 10
Price: discuss
Payment Terms: T/T
Supply Ability: 90 pcs per Month
Product Summary
Circulation Fan Sizing for Dairy and Beef Housing A 72 inch fan of this output is a high-volume machine, and high volume is exactly what a large animal needs. A dairy cow standing in a freestall barn gives off close to a kilowatt of heat; moving that heat away requires a broad band of air travelling ...

Product Details

Highlight:

BLDC Motor Livestock Ventilation Fans

,

Poultry House Circulation Fan

,

72" Motor Cooling Fan

Product Name: 72" Circulation Fan
Motor: Outer Rotor Permanent Magnet Brushless DC Motor
Advatage: Energy Saving And High Efficiency
Rotation Speed: 345r/min
Current: 3.5A
Input Power: 2000W
Air Volume/W: 60m³/h
Product Description

Circulation Fan Sizing for Dairy and Beef Housing

A 72 inch fan of this output is a high-volume machine, and high volume is exactly what a large animal needs. A dairy cow standing in a freestall barn gives off close to a kilowatt of heat; moving that heat away requires a broad band of air travelling at 2 to 3 metres per second across the lying and feeding areas. Small wall fans cannot do it without a dozen units and a kilometre of cable.

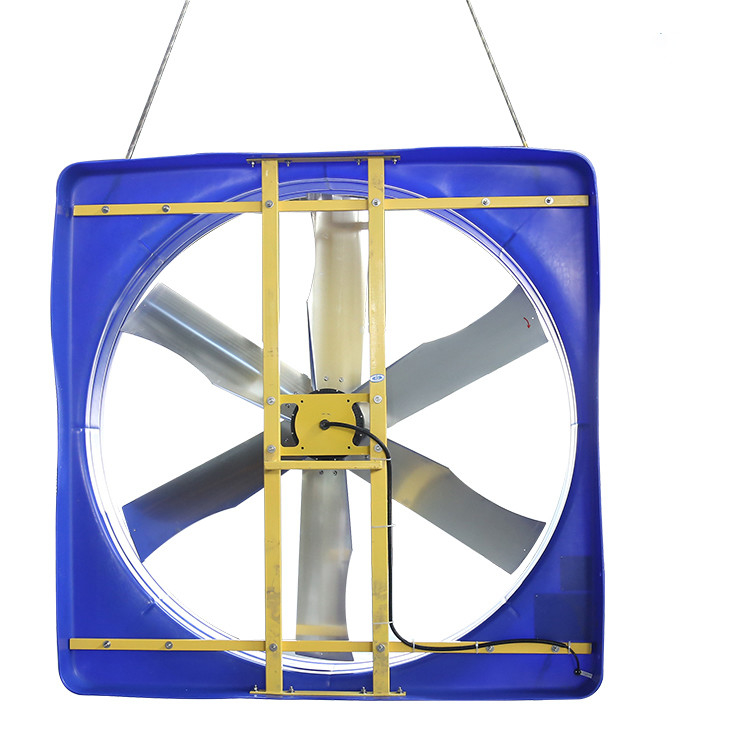

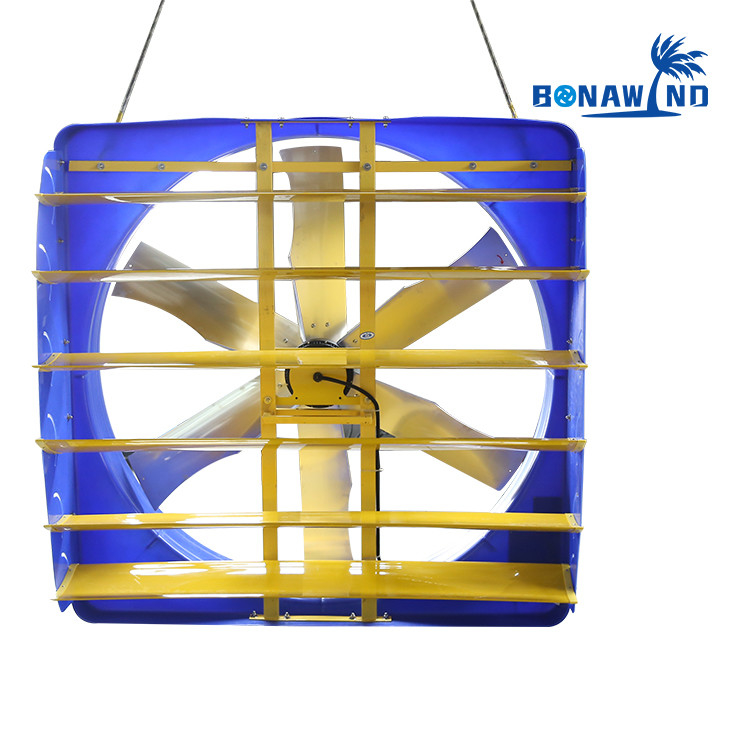

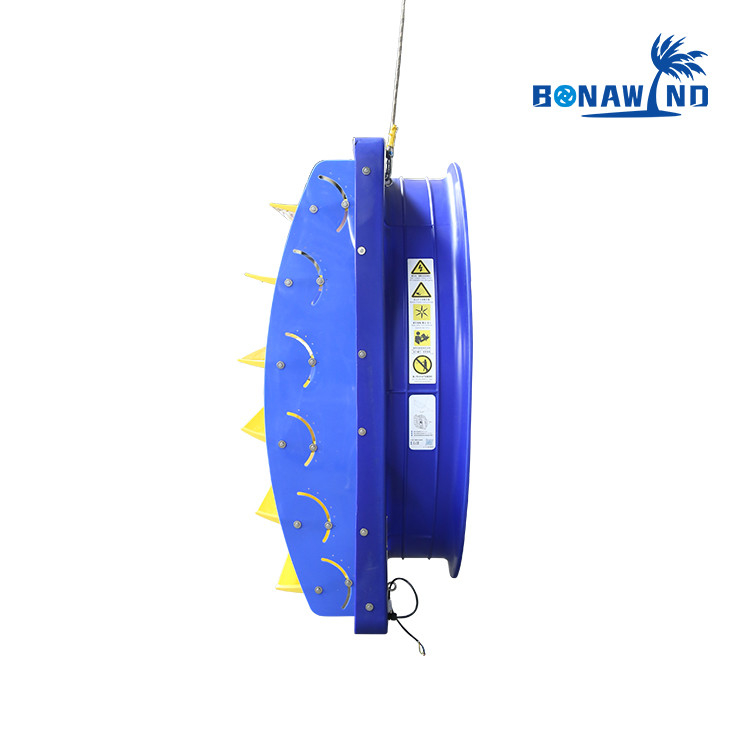

72 inch dairy barn circulation fan for cattle cooling

Matching the fan to the species

Airflow strategy differs with body size. Large animals such as dairy cows, beef cattle and horses carry a thick thermal mass and respond best to sustained air movement over a wide area, which is what a big circulation fan delivers. Poultry houses work on a different principle: birds are ventilated mainly by negative pressure exhaust fans that pull air through the building and control ammonia and humidity by air exchange, with circulation used only as a supplement. Specifying a large circulation fan as the primary ventilation for a poultry shed is a common and expensive mistake.

Performance figures

Frame size2012 x 2012 x 736 mm
Blades6, aluminium alloy
DrivePermanent magnet brushless motor
Rated power2 kW
Supply380 V, 50 Hz
Noise70 dB(A) or lower

Placement in a cattle shed

Hang the fan 2.5 to 3 m above the floor and angle it slightly downward so the jet reaches the cow lying area rather than the ridge. Space units 10 to 12 m apart along the feed lane; that gives an unbroken band of moving air instead of isolated pockets of comfort. Over the collecting yard, mount higher and aim along the race so cows waiting for milking stand in airflow rather than in still, humid air.

Controls and running cost

The brushless motor accepts speed control, so airflow can be trimmed at night and raised at midday without a mechanical damper. Soft starting avoids the current spike that trips shed circuits when several induction fans start together.

Maintenance

Clean the blades each quarter, check the bracket bolts before the hot season, and listen for bearing noise at start-up. A balanced blade set is the difference between a fan that runs quietly for ten years and one that rattles in its third summer.

Send us the barn dimensions, ridge height and cow numbers, and we will propose fan count and positions for the building.
