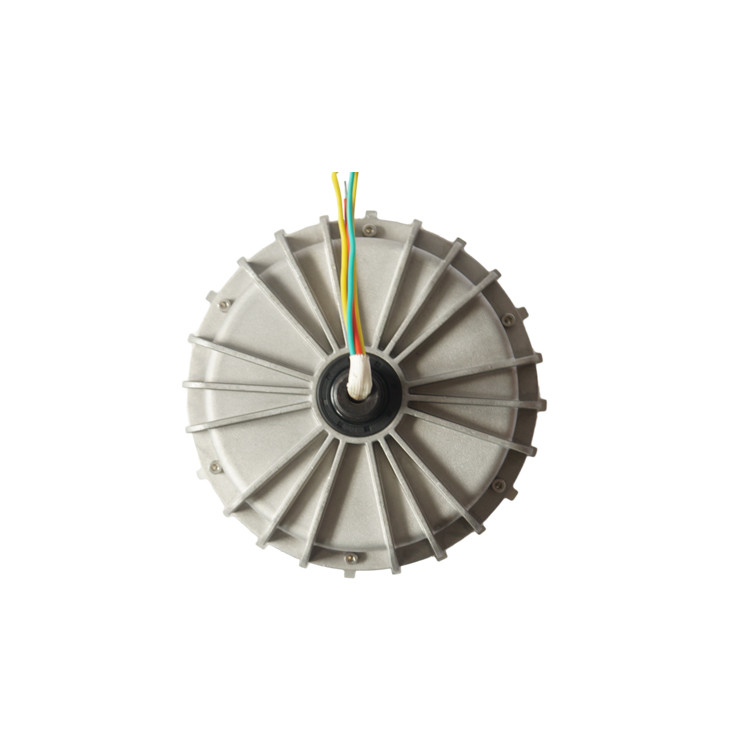

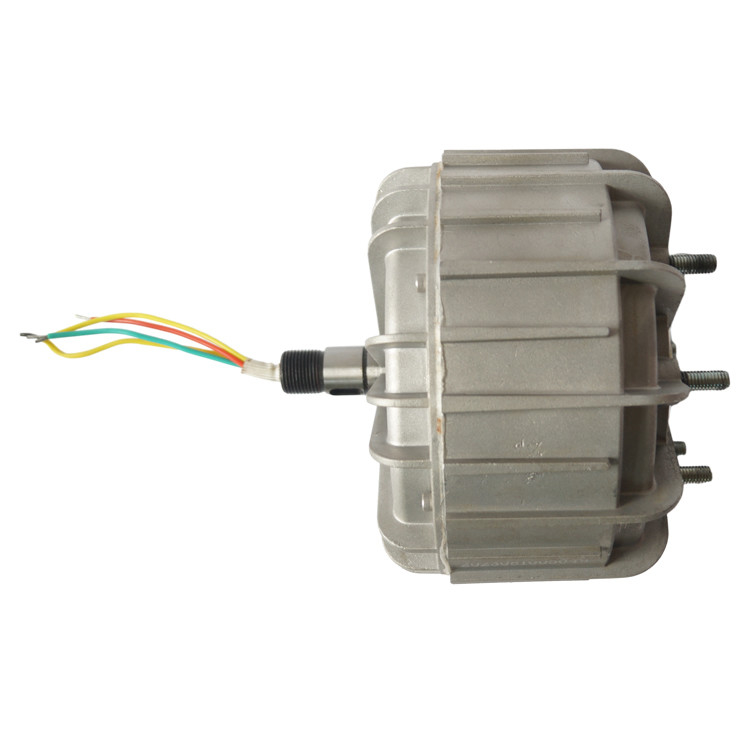

3 Phase Bldc Electric Motor Kit Industrial PMSM High Speed Electric Motor

3 Phase Bldc Electric Motor Kit Industrial PMSM High Speed Electric Motor
3 Phase Bldc Electric Motor Kit Industrial PMSM High Speed Electric Motor
3 Phase Bldc Electric Motor Kit Industrial PMSM High Speed Electric Motor 3 Phase Bldc Electric Motor Kit Industrial PMSM High Speed Electric Motor 3 Phase Bldc Electric Motor Kit Industrial PMSM High Speed Electric Motor 3 Phase Bldc Electric Motor Kit Industrial PMSM High Speed Electric Motor

Large Image :  3 Phase Bldc Electric Motor Kit Industrial PMSM High Speed Electric Motor

Product Details:
Place of Origin: China
Brand Name: Terrui
Certification: CE
Model Number: PMSM
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Carton
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 500pcs per month

3 Phase Bldc Electric Motor Kit Industrial PMSM High Speed Electric Motor

Description
Keywords: PMSM Motor Mounting: Free Standing
Electric Current Type: DC Application: Industrial Ceiling Fan
Driving Type: Permanent Magnet Synchronization Reliability: Direct Drive, Reliable Than Traditional Induction Motor/gear Box System
Energy Saving: 30% Saving Advantage: Simple Structure, Compact Size, Reliable And High Efficiency;
High Light:

3 Phase bldc electric motor kit

,

Industrial PMSM electric motor kit

,

PMSM high speed electric motor

                             3 Phase Bldc Electric Motor Kit Industrial PMSM High Speed Electric Motor 0



DESCRIPTION
The PMSM(permanent magnet synchronous motor) uses rare earth permanent magnets to maintain high magnetic density, with our high efficiency motor controller,
it can reach high torque and high efficiency in low speed, suitable to drive large industrial HVLS fans up to diameter 7.3M, gear box is not needed anymore.
The coil of the motor is winded by auto-winding machine developed by ourselves, the motor is high efficiency with compact size, performance is stable.
Advantage
1,High Efficiency: up to 85%
2,Energy saving: 30% saving
3,Simple structure, compact size, reliable and high efficiency;



Voltage Motor Model Motor Power(W) RPM Current G.W(KG)
220v/380v M300 1500 0-100 14.2 35
220v/380v M300 1100 0-100 10.4 35
220v/380v M300 1100 0-80 10.4 35
220v/380v M198 550 0-80 5.2 30
220v/380v M198 550 0-80 5.2 30
220v/380v M198 350 0-75 3.3 30
220v/380v M198 350 0-75 3.3 30
220v/380v M147 200 0-75 1.9 26
220v/380v M147 180 0-100 1.7 26
220v/380v M147 100 0-110 0.9 26

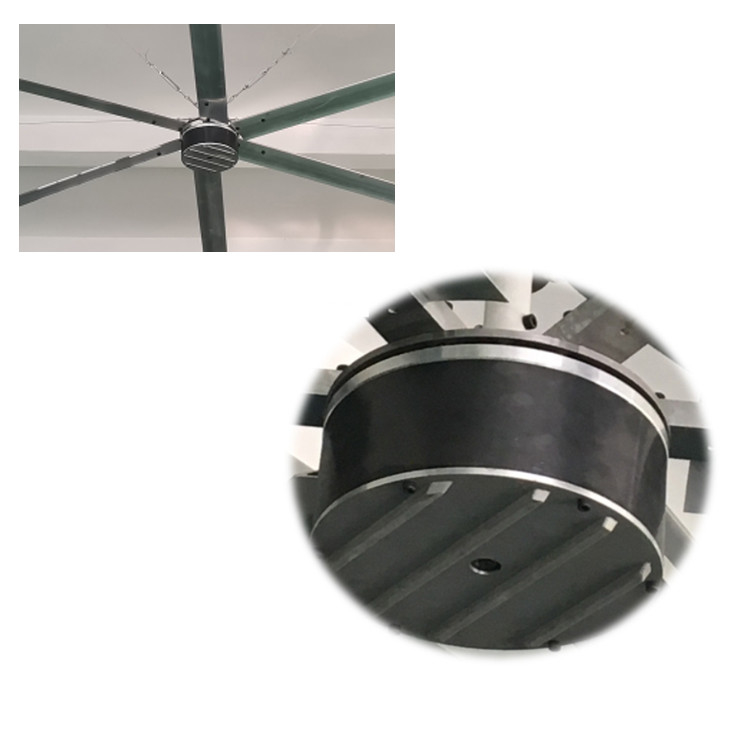

Permanent magnet motor for big fan
The new self-developed external rotor motor with large torque and permanent magnet synchronization replaces the traditional
motor+gearbox reducer, achieving a high degree of integration and improving reliability and transmission efficiency.
At the same time, the permanent magnet synchronous external rotor motor is adopted, with its own IMU configuration, to achieve the
ESC active control strategy+coordinated regenerative braking strategy, driven by the motor directly; Any torque recovery or
auxili-ary braking within the peak torque can be satisfied.
Aluminium alloy material is adopted in many parts to realize the lightweight design.



3 Phase Bldc Electric Motor Kit Industrial PMSM High Speed Electric Motor 1
