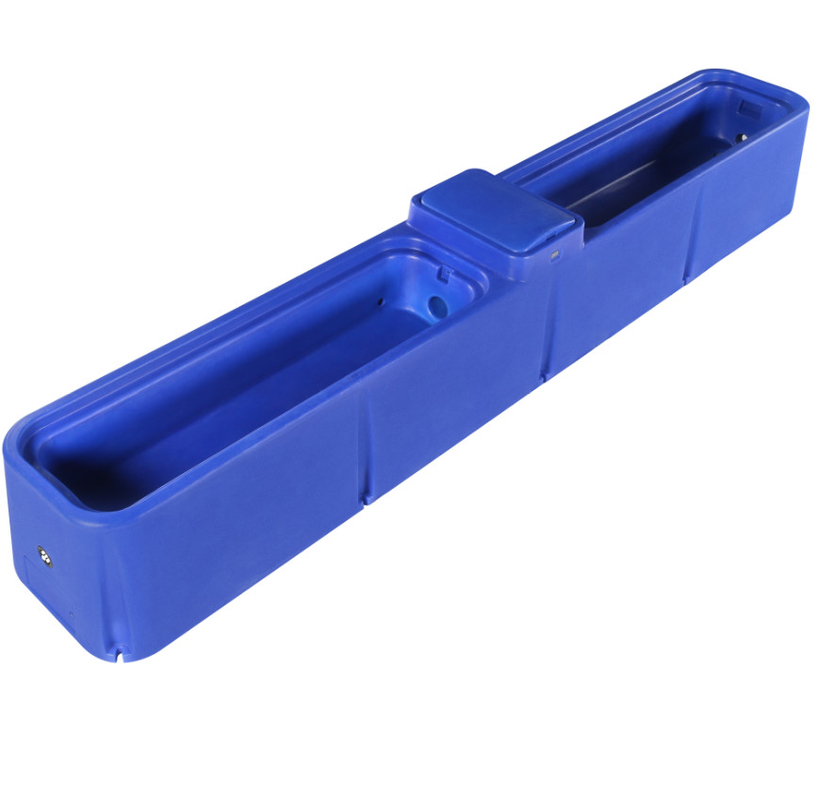

4m Heated Water Trough 300L With 1800W Thermostat Control For Extreme Cold Livestock Farms
Product Details
56 Duck Egg Incubators
,Temperature Control Duck Egg Incubators
,Duck Egg Incubators 80W
When Insulation Alone Is Not Enough
An insulated trough handles ordinary frost. In a prolonged cold snap with wind chill well below freezing, even a well-built wall needs help, and that is where a controlled heating kit earns its place.
Heating specification
| Length | 4000 mm, six drinking positions |
| Capacity | 300 L |
| Heating elements | 6 sets at 300 W each |
| Total heating load | 1800 W, adjustable in two stages |
| Thermostat range | 5 C to 40 C, built in |
| Drinking height | 480 mm |
| Refill | Float valve, 100 to 120 L per minute |
How the control works
A built-in thermostat reads water temperature and switches the elements in stages, so the trough heats only when it needs to. Setting the target a few degrees above zero keeps the surface open without wasting energy on warm water that cattle will not drink anyway. The two-stage arrangement also means a single failed element does not take the whole trough offline.
Running cost
Power draw is proportional to heat loss, not to the size of the element. In a well-insulated body with a cover in place, the elements cycle instead of running continuously, and the annual cost is usually far lower than a continuously energised open heater.
Installation
Bring a dedicated supply to the trough end with an RCD, earth the body, and route the cable in conduit above ground where it can be inspected. Set the thermostat after the first fill, once the water has settled to ground temperature.
Maintenance before winter
Test each element in autumn, check the thermostat against a thermometer, and confirm the earth connection. Replace a failed element before the first hard freeze rather than during it.
Tell us the lowest recorded temperature at the site and the power available, and we will confirm the heating configuration for your shed.
-
