Corner Insulator INS560B 147g Wood Post Electric Fence Insulators For 40mm Tape Double Side Clip
Basic Properties
Place of Origin:
Shanghai
Brand Name:
Terrui
Certification:
ISO 9001
Model Number:
INS560B
Trading Properties
Minimum Order Quantity:
1000PCS
Price:
discuss
Payment Terms:
T/T
Supply Ability:
1,000,000PCS PER MONTH
Product Summary
Product OverviewBuilt for timber post corners, the INS560B steers a broad fencing tape around the turn using two clips that keep it square. A 304 stainless fastener anchors it to the post, and the 147 g shell of HDPE and galvanized steel is made for long-term outdoor lines. The paired clips stop the ...
Product Details
Highlight:
ISO Electric Fence Corner Insulators
,Steel Electric Fence Corner Insulators
,INS560B Wood Post Insulator
Conductor Material:
Stainless Steel
Insulation Material:
HDPE
MOQ:
1000pcs
Package:
10pcs/bag, 200pcs/case
Application:
Electric Fence
Color:
Black Or Customized
Name:
Electric Fence Insulators
Origin:
China
Product Description
Product Overview

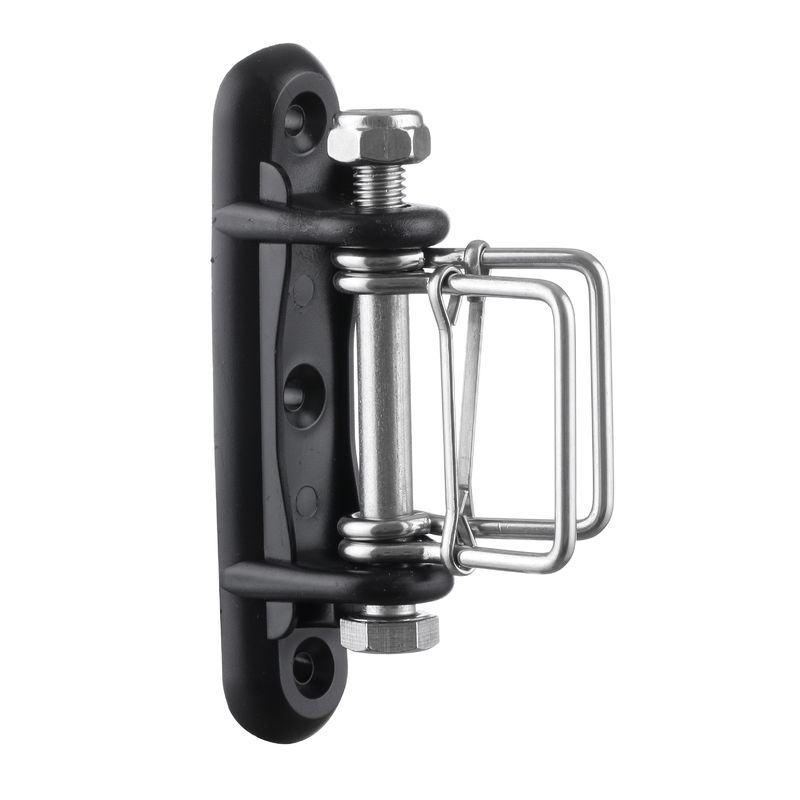

Built for timber post corners, the INS560B steers a broad fencing tape around the turn using two clips that keep it square. A 304 stainless fastener anchors it to the post, and the 147 g shell of HDPE and galvanized steel is made for long-term outdoor lines. The paired clips stop the tape creeping up or twisting as it rounds the corner.
Key Features
- Paired clips steer broad tape around the post squarely
- Suits 2 inch tape and other widths to 40 mm
- Corrosion-resistant stainless fastener
- Reinforced plastic and steel shell for permanent lines
- Withstands rubbing and rough weather
- Custom colours and packaging available
Specifications
| Attribute | Detail |
|---|---|
| Item Code | INS560B |
| Insulator Type | Wood post corner insulator, twin clip |
| Shell Material | HDPE and galvanized steel |
| Fastener | 304 stainless steel |
| Tape Size | Up to 40 mm (2 inch) |
| Finish Colour | Black |
| Weight | 147 g |
| Packing | 10 pcs per bag, 200 pcs per case |
| Carton Size | 53.5 x 43.5 x 16.5 cm |
| Port | Shanghai or Ningbo |
Where To Use
Horse, cattle and stud fences with wide visible tape get the best from the INS560B, where the tape must round a post without twisting. The twin clips keep even long runs consistently aligned.
Installation Tips
Fix the insulator to the corner post at tape height with the stainless hardware, then lay the tape into both side clips so it runs centred. Tension the tape gradually and check that it stays flat through the turn. Inspect the clips and fixing each season.
