Place of Origin:
Shanghai
Brand Name:
Terrui
Certification:
ISO9001
Model Number:
YDA050GA
CONTACT US

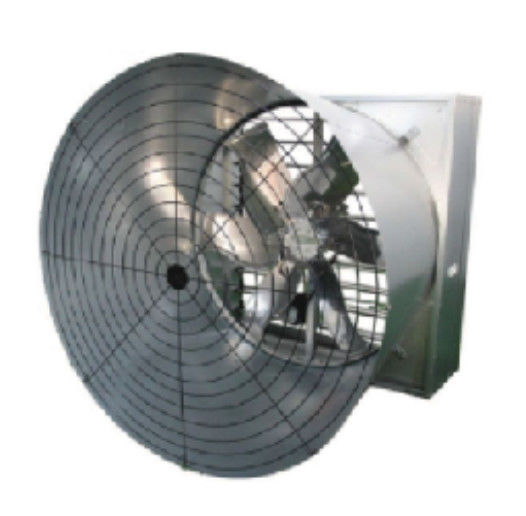

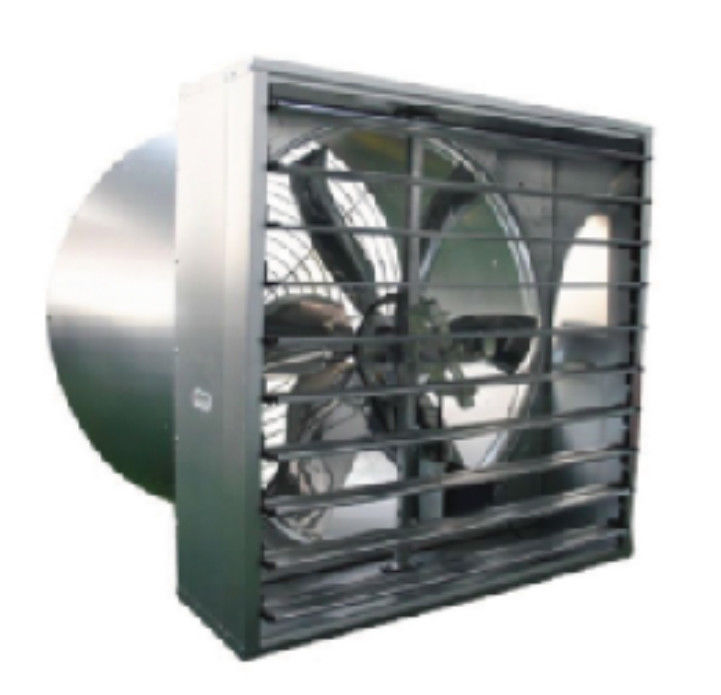

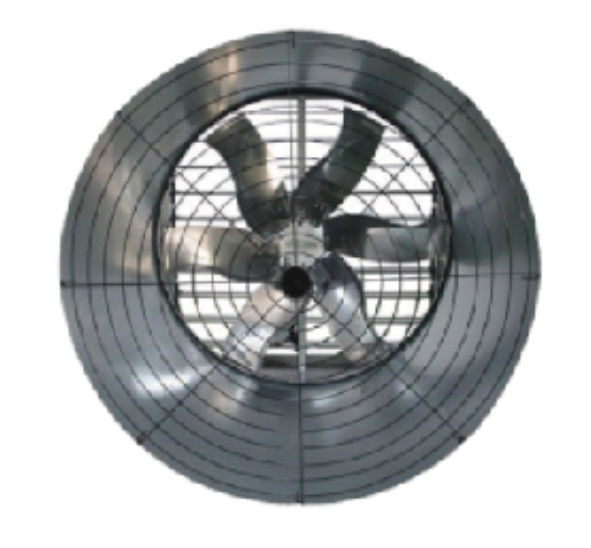

HIGH-VELOCITY EXHAUST FAN GALVANIZED STEEL WITH CONE 36" 50" 55"
Livestock Ventilation Fans
◎The frame is hot galvanized with advanced auto-machining technics. The thickness of the
the galvanized layer is 275g/㎡
◎Reasonable cone designing can concentrate blowing and direction, so the airflow is
bigger and the fan will be energy-efficient, lower noise.
◎Easy to maintain and install
◎6 blades one fan with Stainless steel blade. Do a balance test to make sure the weight
between each blade is similar
◎Using advanced front double door opening device, small wind resistance
◎Voltage and frequency can be customized
| Part No# | Name | Rated power | Air Flow(m3/h) | Drive Mode | overall Size mm |
| YDA036GA |
36" galvanized exhaust cone fan |
550W | 31000 | belt | 1000*1000*1000 |
| YDA050GA | 50" galvanized exhaust cone fan | 750W | 51000 | belt | 1100*1100*1160 |
| YDA055GA | 55" galvanized exhaust cone fan | 1100W | 56000 | belt | 1380*1380*1250 |
Send your inquiry directly to us
