Power Ceiling Mounted Industrial Fan DC Motor Optimal Airflow Efficiency

Power Ceiling Mounted Industrial Fan DC Motor Optimal Airflow Efficiency

Power Ceiling Mounted Industrial Fan

DC Ceiling Mounted Industrial Fan

1500w DC Motor Industrial Fan

Place of Origin:

China

Brand Name:

Terrui

Certification:

ISO9001

Model Number:

YBA07306ECA0

CONTACT US

Request A Quote
Product Details
Input Power:
1500w
Rated Current:
2.8A
Noise:
≤36dB
Max Airflow:
14300m³/min
Size:
7300mm
Product Name:
Industrial Ceiling Fan
Motor:
External Rotor Permanent Magnet Motor
Payment & Shipping Terms
Minimum Order Quantity
50PCS
Price
discuss
Packaging Details
Poly Bag & Carton
Delivery Time
in 10 days
Payment Terms
T/T
RELATED PRODUCTS
CONTACT US
86-21-64953307
Contact Now
Product Description

Product Description:

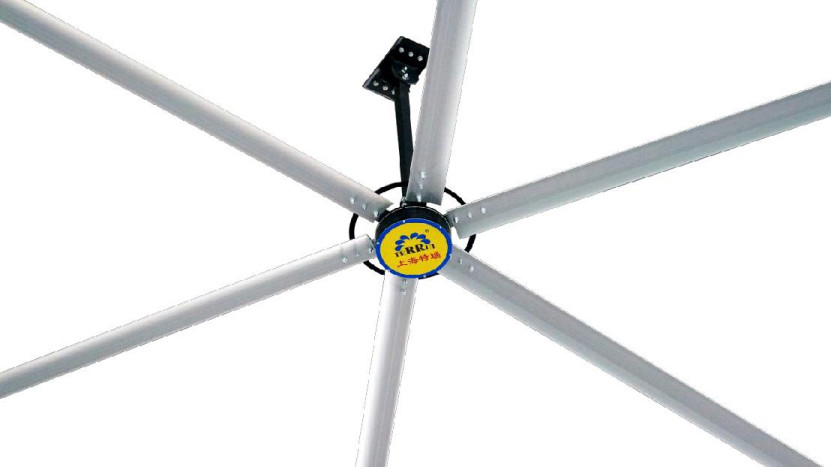

Terrui 7.3 meters outside rotor permanent magnet direct drive energy-saving large ceiling fan, can quickly drive the air circulation, reduce the body temperature, improve the working environment, which can not only improve the work efficiency, but also reduce the loss of employees because of the high temperature and hot factory can not be improved. Permanent magnet large ceiling fan can carry the Internet of Things dynamic escape system, in the cooling and ventilation at the same time, equipped with a variety of control methods, such as controller, mobile APP remote control, intelligent operation, reduce manpower and material input, reduce operating costs.

Power Ceiling Mounted Industrial Fan DC Motor Optimal Airflow Efficiency 0

Power Ceiling Mounted Industrial Fan DC Motor Optimal Airflow Efficiency 1

Technical Parameters:

Product Attribute Value
Product Name Large Industrial Ceiling Fan
Motor External rotor permanent magnet motor
Power 3Φ/380V/50HZ
Rated Current 2.8A
Noise ≤36dB
Number of Blades 6
Fan Blade Diameter 7300mm
Fan speed 55±5r/min
Max Airflow 14300m³/min
Effective coverage area 1000m²
Motor Protection Grade IP55


Applications:

Featuring an outer rotor permanent magnet brushless DC motor, the Terrui delivers efficient, reliable performance that will keep your facility cool and comfortable.


The Terrui industrial ceiling fan features six blades, which are designed to move large volumes of air with ease. This makes it an ideal choice for high-volume, low-speed (HVLS) industrial ceiling fan applications, where the fan can help to circulate air throughout the facility, improving ventilation and reducing the risk of heat-related illness.

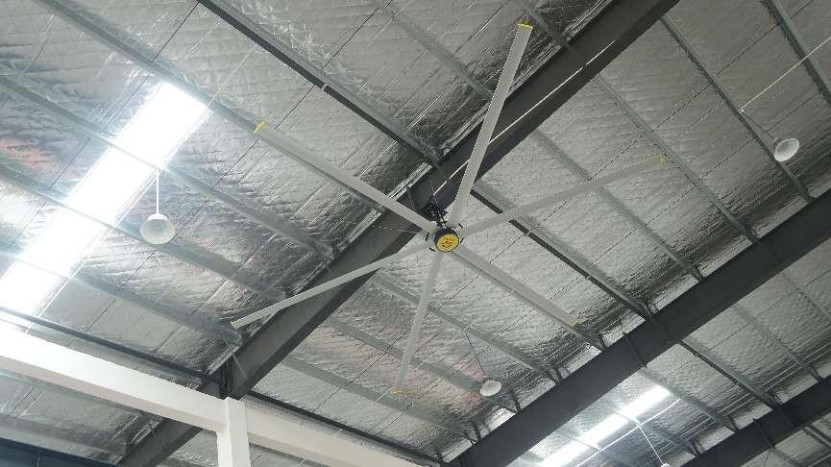

Installation is easy, with the Terrui designed to be ceiling-mounted. This makes it a great choice for facilities with high ceilings, where traditional fans may not be effective. With its powerful motor and large coverage area, the Terrui is sure to keep your facility cool and comfortable, no matter how large or challenging the space.



Whether you're looking for an industrial ceiling fan for your warehouse, farm, or other large-scale industrial setting, the Terrui is the perfect choice. With its powerful motor, six blades, and easy installation, this fan is sure to deliver reliable performance and keep your facility cool and comfortable for years to come.


Power Ceiling Mounted Industrial Fan DC Motor Optimal Airflow Efficiency 2
